AE 040M

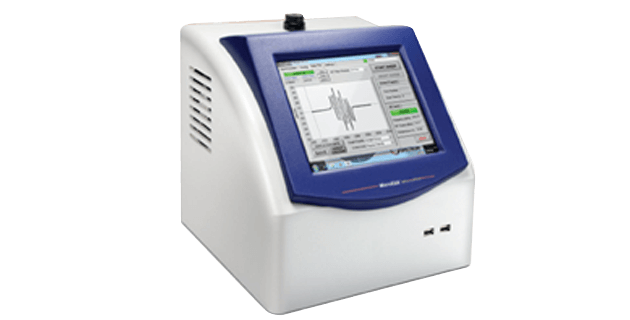

Benchtop Electron Spin Resonance

catalougRequest for Catalogue Send Enquiry

The Benchtop Micro-ESRT includes our patented miniature electron spin resonance spectrometer, operating at 9.6 GHz, with a sweep range of up to 350 Gauss and sub-micromolar sensitivity in aqueous solution. Also included are a full Windows computer system, integrated touchscreen, Ethernet and multiple USB ports.Scientific research, education, and industry applications of electron spin resonance are nowextraordinarily cost-effective.

SPECIFICATION

Parameter X-band (9.5 GHz)
Sensitivity 0.1 µM
Minimum sample volume 100 µL
Magnet Assembly 3480 + 150 Gauss
Magnetic Field Uniformity 0.25 Gauss
Supply Voltage 15 VDC / 6.7A (120V/240V Wall Adapter Included)
Data Interfaces Ethernet and USB
Temperature Controller Included
Dimensions 12"x8"x5"H
Internal Bore Diameter ø4.0 mm
Maximum Pressure 100 psi
Fluid Fittings 1/4" Swagelok
Maximum Oil Inlet Temperature 160°C
Operating Temperature Range -30°C to +55°C
Parameter X-band(9.5 GHz)
Supply Voltage 12-32 VDC / 2.5A
