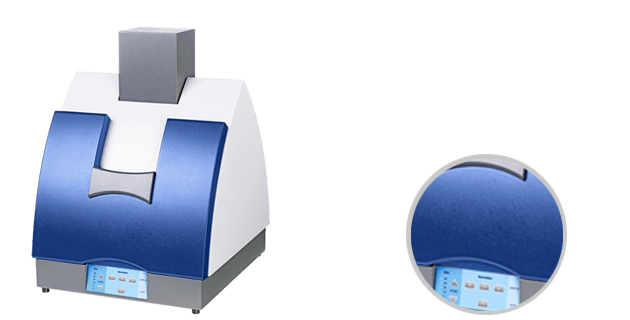

THIN LAYER CHROMATOGRAPH

Request for Catalogue Send Enquiry

The visual presentation of the complete chromatogram showing all samples and standards side by side is one of the most convincing arguments for Thin-Layer Chromatography. No other chromatographic technique can directly express the result as a color image and make it available for visual evaluation.

For electronic image acquisition the camera – like the human eye – captures polychromatic visible light. Under white light illumination it is the light reflected from the layer background. Under long-wavelength UV light (366 nm) it is the light emitted by fluorescent substances. When short-wavelength UV light (254 nm) is used, substances absorbing UV 254 appear as dark zones, provided the layer contains a fluorescence indicator (fluorescence quenching).

Key features

• Reproducible high-quality images acquired under homogeneous illumination with the selected light
• Easy and intuitive operation with visionCATS
• High-dynamic-range imaging (HDRI)
• Side by side comparison of tracks originating from the same or different plates and/or different illumination modes
• Various image enhancement tools, e.g. Spot Amplification (“Spot Amp”), Clean Plate Correction and Exposure Normalization
• Image-based profile generation from reference and sample tracks, and subsequent peak integration and calibration
• New digital CCD camera with a maximum resolution of 82 μm on the plate
• USB 3.0 for easy PC connection
• Meets all requirements to be used in a cGMP/cGLP environment
• IQ/OQ qualification and 21 CFR Part 11 ready
